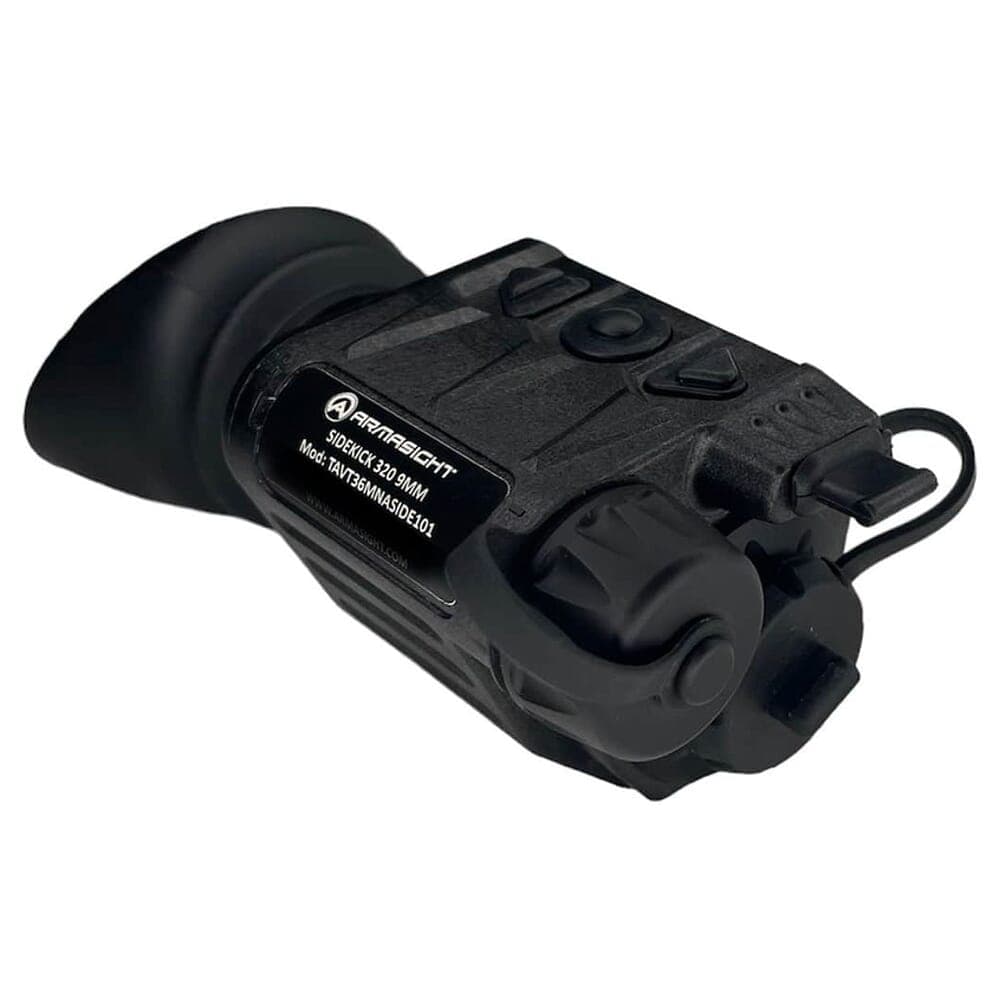

Armasight TAVT36MNASIDE101 Sidekick 320 Thermal Monocular

The Armasight Sidekick 320 Thermal Monocular is a high-performance thermal imaging device. It offers impressive features such as a 50 Hz frame rate for tracking moving objects, a powerful ArmaCORE 320x240 12 μm thermal core for detecting, recognizing, and identifying heat signatures at various distances, and a high-definition XGA 1024x768 display with customizable color palettes for optimal visualization. Its robust ULTEM composite body ensures durability, and user-friendly controls make it easy to operate. This Armasight TAVT36MNASIDE101 thermal monocular is a versatile tool suitable for a wide range of professional and recreational applications.

The Armasight Sidekick 320 Mini Thermal Monocular represents a notable addition to the realm of compact thermal imaging technology. Its multifunctionality allows it to be employed as a handheld device or securely mounted on a helmet for hands-free operation. Boasting a remarkable 50 Hz frame rate, the Sidekick 320 excels in tracking moving objects, delivering seamless panning capabilities.

At the heart of the Sidekick 320 lies Armasight's proprietary ArmaCORE 320x240 12 µm thermal core, an advanced sensor with remarkable capabilities. This exceptional thermal core can detect a heat signature comparable to a human-sized object at distances of up to 331 meters, recognize such a signature at 85 meters, and identify it with precision at 53 meters. This level of detection performance is invaluable in applications like surveillance and target identification.

The Sidekick 320 takes the thermal imagery captured by its thermal core and projects it onto a high-definition XGA 1024x768 display. This ensures that the visuals are presented with exceptional clarity and detail. Furthermore, users can customize their experience by choosing from multiple color palettes to adapt the device to specific environments or their individual preferences. Image quality can be further enhanced through integrated digital enhancement features, making it ideal for scenarios where clarity is paramount.

In terms of durability, the Sidekick 320 is engineered with a robust ULTEM composite body, purposefully designed to withstand the challenging conditions of real-world applications. This sturdiness ensures that the device can thrive in outdoor and tactical environments.

Features of the Armasight Sidekick 320:

• Multiple color palettes


• Intuitive 3-button control


• 1 hour runtime on 1 CR123A battery at 20° C


• Image Detail Enhancement


• Dovetail Mini-Rail Included for Helmet Mounting (with optional mount)


• Video Recording & Image Capture


• USB Video Stream


• USB-C Interface for External Devices


• Compass


• Battery Status Indicator


• ULTEM Composite Body and Ergonomic Design


• Designed and Assembled in the USA from U.S. and global component

Package Includes

• Sidekick 320 Mini Thermal Monocular


• 2 x CR123A Battery


• USB-C Cable


• Lens Cloth


• Soft Case


• Product Manual
