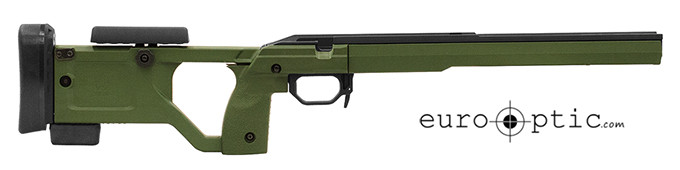

Kinetic Research Group’s X-RAY has similar ergonomics to the KRG’s Whiskey-3 chassis with more adjustability to the length of pull. KRG kept all the same features that shooters want and kept the production cost down to make this great hybrid aluminum and polymer chassis.
Forend
Polymer
Mounting holes will take L2 Picatinny rails, Tripod Mount, etc
Access hole for action mounting screw (allows the action to be removed without the forend having to be removed)
Chassis
Polymer
V-bedding system that is CNC’d into aluminum
Hardened stainless steel recoil lug
Rem 700 chassis can accommodate larger aftermarket recoil lugs
Will accept barrel contour up to 1.15” straight cylinder (Will have clearance for the standard 1.25” barrel shank for about 4” past the action face)
Trigger Guard/Mag catch
Aluminum with similar shape to the TRG trigger guard
Will accept stock Tikka T3 triggers or Barnard triggers
Rem 700 chassis will accept the new x-mark triggers and most aftermarket triggers
Mag catch is low profile to reduce snags but still provides excellent ergonomics and control (extender button is an optional item)
Magazines Used
AICS 5 or 10 rounds mags (not included)
If used with the Tikka T3, it can be used with or without front spacer plate
If used with the Remington 700, the spacer plate must be used unless the rifle has a modified action
Cheekpiece/Handgrips
1” travel
Quickly removed and re-installed using a clamp and thumbscrew design
Simple feature allows the cheekpiece to return it to the exact height it had been set
Can be moved forward and backward with one alternate position
Made of polymer
Buttstock
Polymer
Heavy internal ribbing
Thumbshelf for same-side-thumb-grip
QD sling mount on each side
Buttpad has vertical adjustability with a hex wrench (pattern is for a Remington 700 which allows for installation of aftermarket pre-fit pads)
Length of Pull
Length of Pull can be adjusted with 3/8” spacers for a total of 2 ¼” adjustment
Length of Pull varies slightly between versions from 12.7” to 15”
Comes with 3 spacers for a max length of pull of 13.8”
Mounting Features
External QD cup on each side of buttsock
Harris bipod stud on forend
Spigot mount and Ambi QD plate can be mounted for additional attachments
Comes with MOE L2 and L3 rails
Materials/Finishes
Most Aluminum parts are Type III hard anodized
Most fasteners are stainless steel with black oxide coating
Steel parts are salt bath nitrided or stainless steel
Grip panels are injection molded reinforced polymer
The X-RAY Chassis is available for the following inlets:
Tikka T3 (non-magnum length calibers)
Remington 700 (short and long action)
Download the X-Ray Chassis Installation Instructions here.
Specifications:
